Commercial Grade, Kawasaki made
Previous
Next

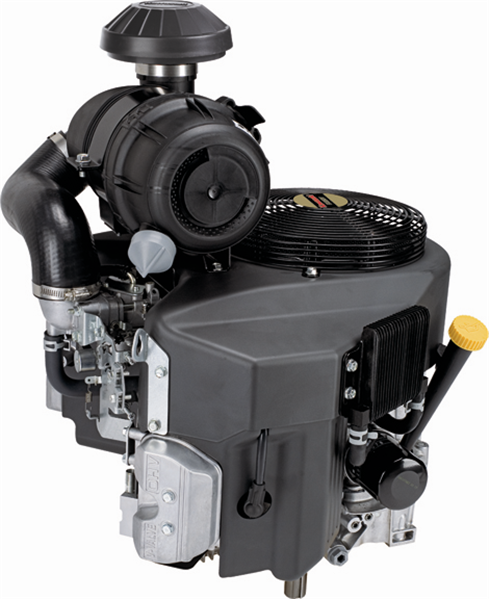

FX850V-AS00-S
1 1/8" Shaft


FEATURES
  • Overhead v-valve
  • 90° V-twin
  • High performance lubrication system
  • Electronic spark ignition
  • Automatic compression release
  • Twin barrel, internally vented carburetor with fuel shut-off solenoid
  • High efficiency oil cooler
  • Rotating grass screen
  • Dual stage canister air filter
  • Cast iron cylinder liners
  • Metal engine cover
Click to Print This Page

SPECIFICATION
Engine Type Forced Air-Cooled V-twin 4-cycle Vertical Shaft OHV Gasoline Engine
Number of Cylinders 2
Bore x Stroke 3.33 x 2.99 in. (84.5 x 76mm)
Displacement 852cm3 (52 cu. in.)
Compression Ratio 8.2:1

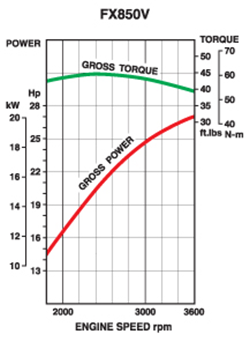

Maximum Power 27.0hp (20.1 kW)/ 3600 rpm
Maximum Torque 44.6 ft. lbs. (60.5 N•m)/ 2400 rpm
Oil Capacity 2.1 U.S. qt. (2.0 liter) w/Filter
Dry Weight (without muffler) 124.0 lbs. (56.4kg)
