Commercial Grade, Kawasaki made
Previous
Next


FX691V-AS14-S
1" Shaft

FEATURES
  • Overhead v-valve
  • 90° V-twin
  • High performance pressurized lubrication
  • Electronic spark ignition
  • Automatic compression release
  • Twin barrel internally vented carburetor with fuel shut-off solenoid
  • Rotating grass screen
  • Dual stage canister air filter
  • Cast-iron cylinder liners
  • Metal engine cover
Click to Print This Page

SPECIFICATION
Engine Type Forced Air-Cooled V-twin 4-cycle Vertical Shaft OHV Gasoline Engine
Number of Cylinders 2
Bore x Stroke 3.1 x 3.0 in. (78 x 76mm)
Displacement 726cm3 (43.3 cu. in.)
Compression Ratio 8.2:1

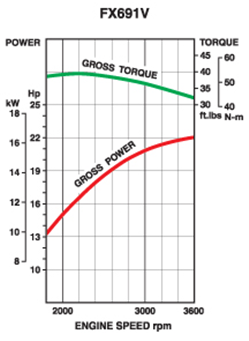

Maximum Power 22.0hp (16.4 kW)/ 3600 rpm
Maximum Torque 39.4 ft. lbs. (53.4 N•m)/ 2200 rpm
Oil Capacity 2.2 U.S. qt. (2.1 liter) w/Filter
Dry Weight (without muffler) 102.7 lbs. (46.6kg)
