Commercial Grade, Kawasaki made
Previous
Next

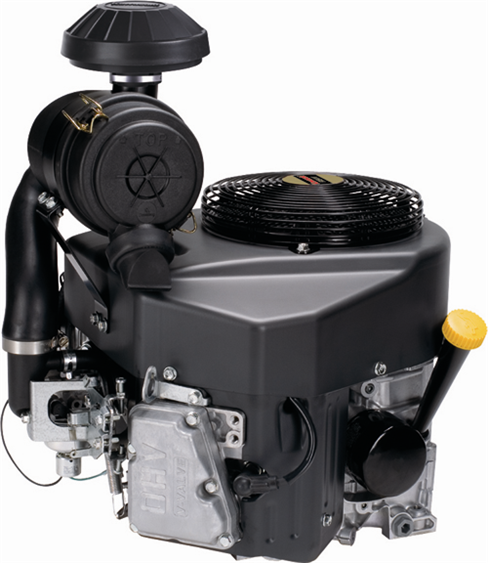

FX541V-AS00-S
1" Shaft

FEATURES
  • Overhead v-valve
  • 90° V-twin
  • High performance pressurized lubrication
  • Electronic spark ignition
  • Automatic compression release
  • Internally vented carburetor
  • Rotating grass screen
  • Dual stage canister air filter
  • Cast-iron cylinder liners
  • Metal engine cover
Click to Print This Page

SPECIFICATION
Engine Type Forced Air-Cooled V-twin 4-cycle Vertical Shaft OHV Gasoline Engine
Number of Cylinders 2
Bore x Stroke 2.9 x 2.8in. (73 x 72mm)
Displacement 603cm3 (36.8 cu. in.)
Compression Ratio 8.1:1

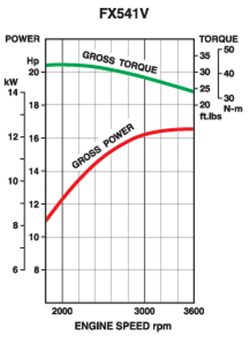

Maximum Power 16.5hp (12.3 kW)/ 3600 rpm
Maximum Torque 32.1 ft. lbs. (43.4 N•m)/ 2000 rpm
Oil Capacity 1.8 U.S. qt. (1.7 liter) w/Filter
Dry Weight (without muffler) 89.7 lbs. (40.7kg)
