Commercial Grade, Kawasaki made
Previous
Next

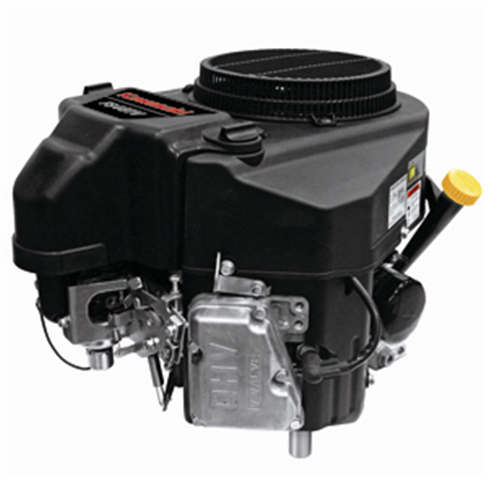

FS481V-AS00-S
1" Shaft

FEATURES
  • Overhead V-valve
  • 90° V-twin
  • High performance pressurized lubrication
  • Electronic spark ignition
  • Automatic compression release
  • Internally vented carburetor
  • Rotating grass screen
  • Dual element air filter
  • Cast-iron cylinder liners
Click to Print This Page
SPECIFICATION
Engine Type Forced Air-Cooled V-twin 4-cycle Vertical Shaft OHV Gasoline Engine
Number of Cylinders 2
Bore x Stroke 2.9 x 2.8 in. (73 x 72mm)
Displacement 603cm3 (36.8 cu. in.)
Compression Ratio 8.1:1

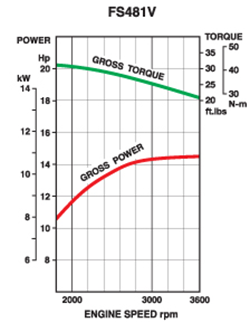

Maximum Power 14.5hp (10.8 kW)/ 3600 rpm
Maximum Torque 30.9 ft. lbs. (42.0 N•m)/ 1800 rpm
Oil Capacity 1.8 U.S. qt. (1.7 liter) w/Filter
Dry Weight (without muffler) 80.9 lbs. (36.7kg)
