Commercial Grade, Kawasaki made
Previous
Next

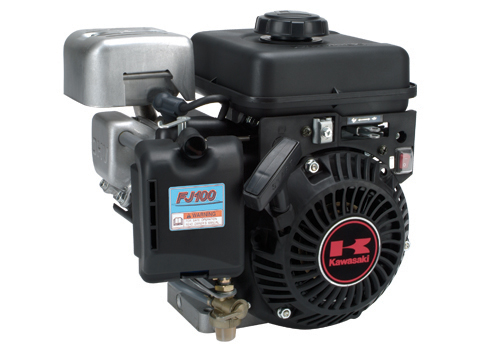

FJ100D-S00
5/8" Shaft

FEATURES
  • Overhead valve
  • Flywheel magneto transistor type ignition
  • Recoil starter with automatic compression release
  • Dual element air cleaner
  • Low tone muffler with guard
  • Fuel shut-off valve
  • Cast iron cylinder liner
Click to Print This Page

SPECIFICATION
Engine Type Forced Air-Cooled 4-cycle Horizontal Shaft OHV Gasoline Engine
Number of Cylinders 1
Bore x Stroke 2.2 x 1.57 in. (56 x 40mm)
Displacement 98cm3 (5.97 cu. in.)
Compression Ratio 8.3:1
Fuel Tank Capacity 1.7 U.S. qt. (1.6 liter)
Oil Capacity 0.43 U.S. qt. (0.41 liter)
Dry Weight (without muffler) 23.0 lbs. (10.5kg)
