Commercial Grade, Kawasaki made
Previous
Next

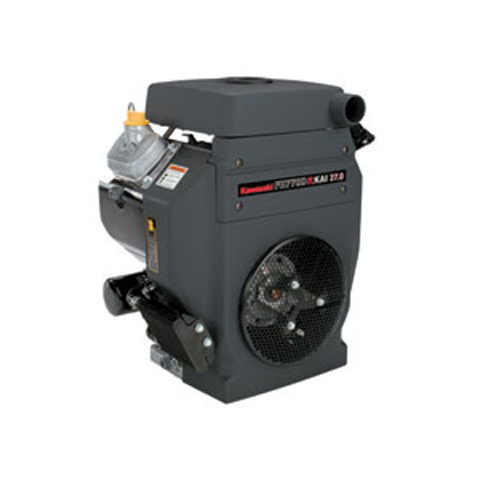

FH770D-S01
1" Shaft

FEATURES
  • Overhead v-valve
  • 90° V-Twin
  • Pressurized lubrification
  • Electronic spark ignition
  • Automatic compression release
  • Dual element air cleaner
  • Multi-position air cleaner
  • Twin barrel, internally vented carburetor with fuel shut-off solenoid
  • Rotating grass screen
  • Recoil starter with automatic compression release
  • Cast iron cylinder liners
  • Oil cooler
Click to Print This Page

SPECIFICATION
Engine Type Forced Air-Cooled V-twin 4-cycle Horizontal Shaft OHV Gasoline Engine
Number of Cylinders 2
Bore x Stroke 3.15 x 2.99 in. (80 x 76mm)
Displacement 764cm3 (46.6 cu. in.)
Compression Ratio 8.1:1

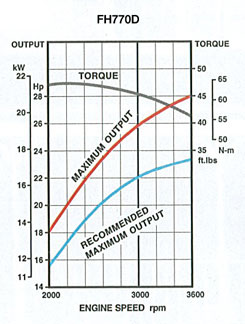

Maximum Power 28hp (20.9 kW)/ 3600 rpm
Maximum Torque 47.6 ft. lbs. (64.5 Nā€¢m)/ 2200 rpm
Oil Capacity 2.0 U.S. qt. (1.9 liter) w/Filter
Dry Weight (without muffler) 98.1 lbs. (44.5kg)
