Commercial Grade, Kawasaki made
Previous
Next

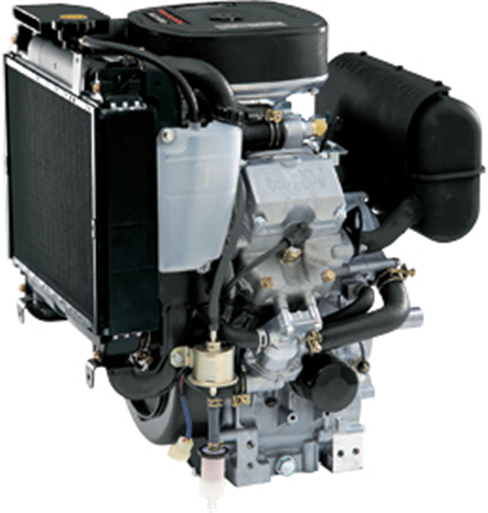

FD750D-S06
1 1/8" Shaft

FEATURES
  • Overhead v-valve
  • Liquid cooled
  • 90° V-twin
  • Pressurized lubrication
  • Electronic spark ignition
  • Multi-position, dual element air cleaner
  • Twin barrel carburetor with fuel shut-off solenoid
  • Oil pressure switch
  • Water temperature switch
  • Cast iron cylinder liners
Click to Print This Page

SPECIFICATION
Engine Type Liquid-Cooled V-twin 4-cycle Horizontal Shaft OHV Gasoline Engine
Number of Cylinders 2
Bore x Stroke 3.07 x 3.07 in. (78 x 78mm)
Displacement 745cm3 (45.5 cu. in.)
Compression Ratio 8.5:1

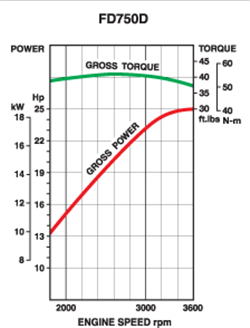

Maximum Power 25.0hp (18.7 kW)/ 3600 rpm
Maximum Torque 41.0 ft. lbs. (55.6 N•m)/ 2600 rpm
Oil Capacity 2.1 U.S. qt. (2.0 liter) w/Filter
Dry Weight (without muffler) 122 lbs. (55.4kg)
